News

ed-k certified according to ISO 9001:2015

03/2025

Our primary goal is customer satisfaction. Therefore, we have decided to have our quality management system certified according to ISO 9001:2015.
The EN ISO 9001 standard defines the requirements for quality management systems and serves to support the development of an internal, process-oriented management system with the goal of meeting customer requirements and legal and regulatory requirements, increasing customer satisfaction, and initiating and demonstrating a process of continuous improvement.
All of our employees live and breathe the ISO 9001 system and are thus the guarantor of our company’s ever-growing success.

Solderless test adapters for low inductance SMD components

02/2025

The measurement of small inductance values with the Power Choke Tester DPG10/20 series is limited to values greater than approximately 1-3 µH when using test cables.
This is partly due to the inductance of the test cables, which, despite their low-inductance design, is in the range of 0.7-1.5 µH. As a result, with low-inductance test objects, most of the measurement voltage is dropped on the test lead rather than on the test object.
On the other hand, the coupling between the force and sense leads increases with lower inductance of the test object, resulting in an increase in measurement error.
Therefore, we developed test adapters for measuring low-inductance components some time ago. SMD components and also through-hole components can be soldered directly onto these MAB1, MAB2, and MAB3 test adapters, which are then plugged directly into the sockets on the front panel.
The disadvantage is that the components must be soldered. That’s why we’ve now developed solderless test adapters for SMD components. These allow SMD components with a length between 6 and 25 mm and a width between 6 and 25 mm to be contacted. They are fixed by a spring-loaded clamp.
A separate test adapter is available for each current measurement range (MAB1SMD, MAB2SMD, and MAB3SMD). With these adapters, inductance values down to 50-100 nH can be reproducibly measured if the measurement parameters are optimally selected.

ed-k donates over EUR 21,000 for charitable purposes

12/2024

ed-k donates over EUR 21,000 for charitable purposes

It is not only for what we do that we are held responsible, but also for what we do not do.
(Moliere, 1622 – 1673)

Taking responsibility for the well-being of the environment and society should be a matter of course for every company. Based on this conviction, ed-k is donating a very significant sum to charitable purposes in the quiet period before Christmas in 2024, as in previous years.
More than EUR 21,000 was used to support non-profit organizations in the fields of environmental protection, human rights, education and fact-based journalism. We will continue our commitment in the future.

New download portal now online

10/2024

Software updates have always been available free of charge from us and will continue to be so in the future. Up until now, we have sent software updates by email on request. This is no longer possible since version 3.5.x due to the high data volume.
We are therefore very pleased to be able to present our new download portal to you. It requires registration with your company name, your name and the serial number(s) of your device(s) so that we can activate you for the software versions that match your device (1st, 2nd or 3rd generation). Activation usually takes no longer than 24 hours. You can then download the latest version at any time.
Registration and activation are of course free of charge.

New InterfaceBox for Integration of the DPG10 Series in a Fully Automated Test Line

08/2024

With the help of our new InterfaceBox INT1, inductance measurement is possible in a fully automated test line without having to write your own software to control the Power Choke Tester DPG10.
Our InterfaceBox INT1 provides the interface between our PC software and a fully automated test line. 3 universal inputs and 5 universal outputs enable interaction with the test line’s PLC. For example, the PLC can tell the DPG10 software when a new test object has been contacted and the DPG10 software can tell the PLC that a measurement is in progress, when the measurement is finished and whether the test object has passed the test. The test object can then be ejected accordingly. Warning lights, horns or foot switches can also be connected.

Accessories

ed-k in Bodo’s Power Systems

03/2024

This year again, a new cover story about ed-k products has been published in the well-known trade journal “Bodo’s Power Systems”, which specializes in power electronics.
The focus of the article is on measuring small inductance values in the nH range with the Power Choke Tester DPG10 series and the new test adapters developed for high-current SMD inductors. With the help of these adapters, inductance values of down to 50nH can be measured reproducibly.
Such inductors are increasingly needed, e.g. in POL DC/DC converters with low output voltages or as filters in electric vehicles.

Downloads

Move to larger premises

11/2023

Due to the constant growth, we are moving at the end of the year as the previous premises have once again become too small. The new company headquarters are also in Planegg, directly on the western outskirts of Munich, just a few 100m away from our current location. The extensive renovation is currently taking place according to our special requirements (e.g. ESD floors, special lighting).

We are closed between December 23rd, 2023 and January 1st, 2024. We will only be available to a limited extent in week 1/2024. From January 8th, 2024 we will be available again at the new address in Fraunhoferstr. 22.
All contact details such as telephone numbers and email addresses remain the same.

We are looking forward to working in a very pleasant new environment that offers us much more space to develop.

Please note that calibrations and repairs must be sent to our new address from January 8th, 2024:

ed-k Dipl.-Ing. Hubert Kreis
Fraunhoferstr. 22
D – 82152 Planegg

New software V3.5.x for routine testing in mass production

2/2023

We have significantly improved the PC software for our Power Choke Tester DPG10 series. There are now two different applications for operating the devices with different user interfaces.

an application intended for laboratory operation and small series routine testing with the familiar user interface (lab application)
an application optimized for routine testing in mass production with a user interface reduced to the necessary operating elements and a configurable large display (production application)

In the production application, the measurement results are stored in a database. In the laboratory application, the data can either be saved in xml files as before or also in a database. The laboratory application is available both as a 32-bit and as a 64-bit application, the production application only as 64-bit.

The new production application enables very effective and fast routine testing in mass production. When using a scanner, no actions are required by the user apart from contacting the test object. If contacting is automated, a fully automatic test is possible.

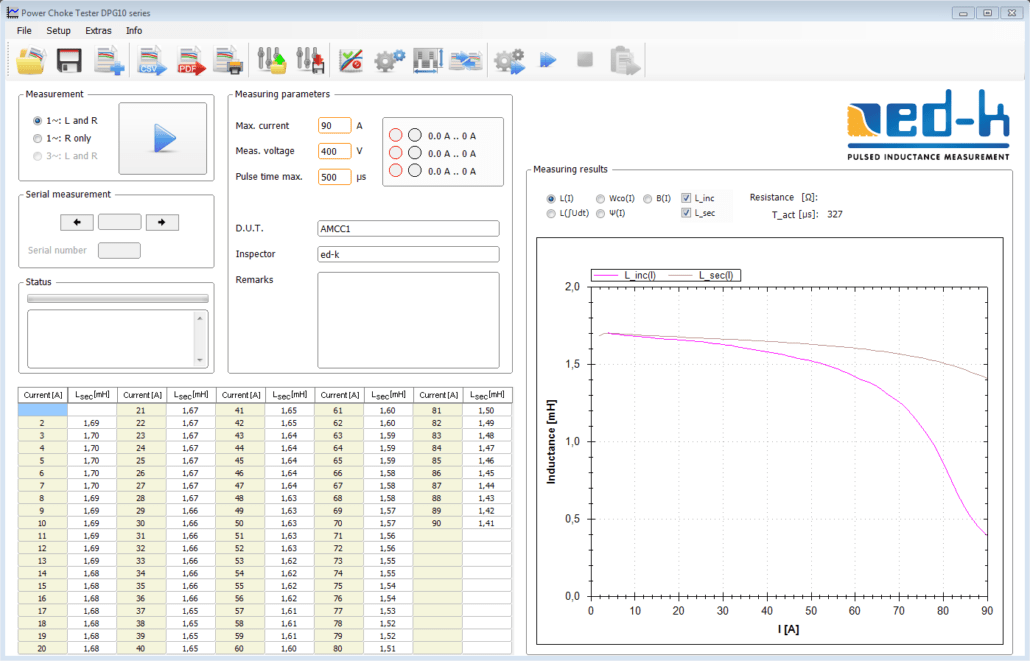

Production GUI of the DPG10 Software

Software

ed-k in Bodo’s Power Systems

01/2023

A cover story about ed-k products has again been published in the well-known trade journal “Bodo’s Power Systems”, which specializes in power electronics.
The article introduces the new Pulse Current Source PCS10 Series. The device series, developed in cooperation with a leading German semiconductor manufacturer, was developed for the dynamic wafer test of IGBTs. The article shows the use for the so-called “clamped inductive load test” to check the RBSOA and the SCSOA of IGBT wafers according to IEC60747-9.
The article also presents new features for the Power Choke Tester DPG10 series:

The new production application for routine testing in mass production
The new test adapters for testing low-inductance components and SMD components

Bodo’s Power Systems magazine issue 01/2023

Downloads

New Models DPG10-2000B and DPG10-2000B/E

10/2022

The models DPG10-1500B and DPG10-1500B/E are no longer produced. They will be replaced by the more powerful DPG10-2000B and DPG10-2000B/E models.

The 1500A models were derivatives of the DPG10-1000B. Only the 1000A range was extended to 1500A, while the ranges up to 100A and up to 10A remained unchanged. Like all other models of the Power Choke Tester DPG10/20 series, the new 2000A devices now have three current measuring ranges, which differ by a factor of 10 (2-20A, 21-200A, 201-2000A).

The new models DPG10-2000B and DPG10-2000B/E are operated using the same powerful software as the other models in the DPG family.

Despite the significantly higher performance, we were able to keep the prices almost stable compared to the old 1500A devices.

DPG10 - Series

New Device Series Pulse Current Source PCS10

06/2022

The new Pulse Current Source PCS10 series is a series of pulse current sources capable of delivering pulses with an adjustable voltage up to 400V and a current up to 3000A (depending on the model). It was derived from our well-known Power Choke Tester DPG10 series and is available now.

The Pulse Current Source PCS10 series is suitable for inductive and resistive loads. The pulse energy is taken from a capacitor battery and can be up to 2kJ depending on the model, pulse repetition rate and selected pulse voltage. Both the pulse duration and the current can be preselected as criteria for ending the voltage pulse.

The voltage and current are unregulated. When the pulse energy is relatively small compared to the energy stored in the capacitor bank, the pulse voltage is approximately constant.

The pulse duration can be set between 3µs and 70ms in increments of 1µs. The maximum current, upon reaching which the pulse is terminated, can be set in steps of 1A.
Applications are e.g. the test of power semiconductors (RBSOA), many other applications are possible.

PCS10 - Series

Test Adapter for Testing Low-inductance Components and SMD Components

03/2022

With the Power Choke Tester DPG10 series, the measurement of small inductance values is limited to values greater than approx. 1-3µH due to the use of measuring cables.

On the one hand, this is due to the inductance of the test cables, which is in the range of 0.7-1.5µH despite the special construction. In the case of low-inductance test samples, this means that most of the test voltage drops on the test cables instead of on the test sample. On the other hand, the coupling between Force and Sense lines increases with lower inductance of the test sample, resulting in an increase in the measurement inaccuracy.

That is why we have developed new test adapters for measuring low-inductance components. There is a separate test adapter for each current measuring range of the devices. These three test adapters are available in a set and can be plugged directly into the front panel of the DPG10 devices without a test cable.
This makes it possible to measure inductance values down to < 100nH if the measurement parameters are optimally choosen. Regardless of the inductance, the test adapters are ideal for all SMD components that can be soldered directly onto the test adapters. However, they can also be used for PCB mounted THD components. [/av_textblock] [/av_one_half][av_one_half min_height='' vertical_alignment='av-align-top' space='' row_boxshadow='' row_boxshadow_width='10' row_boxshadow_color='' custom_margin='' margin='0px' av-desktop-margin='' av-medium-margin='' av-small-margin='' av-mini-margin='' mobile_breaking='' mobile_column_order='' border='' border_style='solid' border_color='' radius='' min_col_height='' padding='' av-desktop-padding='' av-medium-padding='' av-small-padding='' av-mini-padding='' svg_div_top='' svg_div_top_color='#333333' svg_div_top_width='100' svg_div_top_height='50' svg_div_top_max_height='none' svg_div_top_flip='' svg_div_top_invert='' svg_div_top_front='' svg_div_top_opacity='' svg_div_top_preview='' svg_div_bottom='' svg_div_bottom_color='#333333' svg_div_bottom_width='100' svg_div_bottom_height='50' svg_div_bottom_max_height='none' svg_div_bottom_flip='' svg_div_bottom_invert='' svg_div_bottom_front='' svg_div_bottom_opacity='' svg_div_bottom_preview='' column_boxshadow='' column_boxshadow_width='10' column_boxshadow_color='' background='bg_color' background_color='' background_gradient_direction='vertical' background_gradient_color1='#000000' background_gradient_color2='#ffffff' background_gradient_color3='' src='' background_position='top left' background_repeat='no-repeat' highlight='' highlight_size='' animation='' animation_duration='' animation_custom_bg_color='' animation_z_index_curtain='100' parallax_parallax='' parallax_parallax_speed='' av-desktop-parallax_parallax='' av-desktop-parallax_parallax_speed='' av-medium-parallax_parallax='' av-medium-parallax_parallax_speed='' av-small-parallax_parallax='' av-small-parallax_parallax_speed='' av-mini-parallax_parallax='' av-mini-parallax_parallax_speed='' css_position='' css_position_location='' css_position_z_index='' av-desktop-css_position='' av-desktop-css_position_location='' av-desktop-css_position_z_index='' av-medium-css_position='' av-medium-css_position_location='' av-medium-css_position_z_index='' av-small-css_position='' av-small-css_position_location='' av-small-css_position_z_index='' av-mini-css_position='' av-mini-css_position_location='' av-mini-css_position_z_index='' link='' linktarget='' link_hover='' title_attr='' alt_attr='' mobile_display='' mobile_col_pos='0' id='' custom_class='' template_class='' aria_label='' av_uid='av-t6u5kn' sc_version='1.0'] [av_hr class='invisible' icon_select='yes' icon='ue808' font='entypo-fontello' position='center' shadow='no-shadow' height='50' custom_border='av-border-thin' custom_width='50px' custom_margin_top='30px' custom_margin_bottom='30px' custom_border_color='' custom_icon_color='' id='' custom_class='' template_class='' av_uid='av-r5v1yf' sc_version='1.0' admin_preview_bg=''] [av_textblock textblock_styling_align='' textblock_styling='' textblock_styling_gap='' textblock_styling_mobile='' size='' av-desktop-font-size='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' font_color='' color='' id='' custom_class='' template_class='' av_uid='av-leh5u3ah' sc_version='1.0' admin_preview_bg='']

Accessories

Power Choke Tester DPG10/20 in Bodo’s Power Systems

11/2021

A three-part series of articles about the Power Choke Tester DPG10/20 series has been published in the well-known trade journal “Bodo’s Power Systems”, which specializes in power electronics.

In the 11/2021 issue, the pulse measuring principle of the DPG10/20 series is presented in detail. The various measuring options are shown and the technical requirements of the pulse measuring principle are discussed. It is explained what should be considered when choosing the measurement parameters in order to achieve the best measurement results.

Article issue 11/2021

In the second part (published in issue 12/2021), the traditional measurement methods (LCR meter and reactance calculation with mains current and mains voltage) and the pulse measurement method with thyristors that cannot be turned off are explained. The inherent disadvantages of these measurement methods are shown and why the pulse measurement method of the DPG10/20 series with IGBT power stage has prevailed over other measurement methods. Finally, the calibration is discussed, which made it necessary to develop our own inductance standards due to the extremely high measurement currents.

Article issue 12/2021

The third part appears in issue 03/2022. It is shown how, with the help of the 3-Phase Extension Unit, the pulse measuring principle of the DPG10/20 series can also be used to measure the inductance of 3-phase chokes. A comparison with the conventional measurement method with mains voltage and mains current shows that only the pulse measurement principle can deliver correct measurement results in the non-linear range and what other advantages it has.

Article issue 03/2022

DPG10 - Series

DPG20 - Series

New features and improvements for the DPG10/20 series

01/2021

The DPG10/20 series is continuously developed and improved.

It now has significantly expanded resistance measuring ranges. Previously, the devices had two internal resistance measuring ranges that were model-specific. From now on the devices have 4 internal resistance measuring ranges, which are identical for all models of the DPG10 series. This improves the resolution of small resistance values considerably to 10 µΩ and the maximum measurable resistance increases to 35 Ω. The accuracy has also been significantly improved.

The resolution of the DPG20 series is now 1 µΩ with a maximum measurable resistance of 3.5 Ω.

In addition, the time for a complete measurement cycle could be shortened by several seconds when connected via USB. This is a great advantage, especially when used for routine tests in series production, as the throughput can be increased considerably. But the time advantage can also be felt in the laboratory for individual tests.

The status of the Safety-Lock-Interface (DPG ready / DPG locked) is now displayed on a traffic light on the user interface.

DPG10 - Series

DPG20 - Series

ed-k becomes a key player in the Cluster Power Electronics within the ECPE

05/2020

We have been connected to the Cluster Power Electronics within the ECPE for many years. At cluster seminars and workshops, for example, we gave presentations on our core area, inductance measurement on inductive power components. From 2014 to 2015, we exhibited at the joint stand of the ECPE during the PCIM fair in Nuremberg.

www.clusterle.de

www.ecpe.org

We are very happy to be official key player in the Cluster Power Electronics within the ECPE now.

DPG20-10000B/G in service

02/2020

Already over 2 years ago we announced that we would develop a new model of the Power Choke Tester DPG family with a measuring current up to 10kA and a significantly increased pulse energy up to 15kJ.

The enormously high measuring current, which can rise to 18kA in the event of a short circuit, and the very large pulse energy have made a completely new development with a new circuit topology necessary. The circuit topology of the DPG10 series was maxed out at currents up to 4000A and 8kJ.

The development was technically extremely demanding. For example, to develop a current sensor that can map the slope of currents up to 18kA with current slew rate up to 1000A/µs and pulse widths from 3µs to 300ms with very high precision. Despite the extremely large measuring currents and the large pulse energy, we were able to integrate the electronics in a very compact housing of only 47x50x34cm³ (41kg).

Unfortunately, the development took longer than planned because the enormous growth in sales over the past two years has repeatedly affected development work. The first device was delivered in Q4/2019. In the meantime, several devices are successfully in service at well-known customers and have proven themselves in practice. The Power Choke Tester DPG20-10000B/G is now available at short notice.

DPG20 - Series

More pulse energy for the DPG10 B series

02/2019

All models of the DPG10 B series will be equipped with an increased pulse energy.
The models DPG10-100B, DPG10-1000B and DPG10-1500B now have 1350J instead of 1150J. For the models DPG10-1500B / E and DPG10-3000B / E, the pulse energy increases from 2500J to 2750J and for the model DPG10-4000B / F from 7500J to 7700J.
The increased pulse energy will be delivered from 04/2019 at no extra charge.

DPG10 - Series

New 3-Phase Extension Unit EXT2 for DPG10-4000B/F

12/2017

Because the previous 3-Phase Extension Unit (EXT1) with a width of 63TE was suitable only for devices up to 3000A, we have developed an additional model that is compatible with the DPG10-4000B/F. The new 3-Phase Extension Unit EXT2 with a width of 84TE was strengthened accordingly and is available from February 2018.

3-Phase Extension Unit EXT2

Warranty extension from 2 to 4 years

10/2017

For the divices of the DPG10 B-series, as well as all other devices from 03/2017, we give a retroactive warranty of 48 months from date of purchase, provided the devices were purchased in the EU. For devices purchased before 03/2017, and devices purchased outside the EU, we continue to give a warranty of 24 months from date of purchase.

Normal wear and tear of test leads and improper use are excluded from the warranty. For the duration of the warranty period, we repair devices free of charge.

Service

New software generation 3.X available

05/2017

It did take a bit longer than we had hoped, but the new 3rd generation software is now ready. It offers an entire new graphical user interface with a larger area for displaying the measurement diagram and improved handling via an uncluttered toolbar. It is compatible with all models of the DPG10 B-series.

The new software generation furthermore offers additional measurement functions, such as the representation of flux density B(i), and will be continuously updated over the coming years. As always, our software updates are available free of charge on request.

Software

New model DPG10-4000B/F

02/2017

We have again extended our range to include higher currents and pulse energies. The DGP10-4000B/F delivers measurement current up to 4000A. At 7500J, pulse energy has tripled as compared to models with option /E. The device is nevertheless very compact, measuring 3HE and weighing little more than 21 kg (47x50x17cm³)!

This equips the device work with very large inductors into the MVA range. At the same time it is also perfectly suitable for small PCB mounted inductors in the smaller measuring ranges of up to 400A and up to 40A. It thus covers an enormous spectrum of inductive components. Inductances can even be precisely measured all the way down to the nH range.

The DPG10-4000B/F is controlled via the same high performance software as the other models in the DPG series.

DPG10 - 4000B/F

Replacement of the DPG10 A-series by the new DPG10 B-series

02/2017

The DPG10 A-series has been produced and continuously improved since 2005, its functional range has been increased and new models added. Now it is being replaced by the new DPG10 B-series. The improvements offered by the new DPG10 B-series as compared to the old A-series include, inter alia:

– new software version 3.x with new user interface and many new features

– more pulse energy (1150J instead of 900J for the models -100B, -1000B and -1500B)

– faster measurements

– more robust, lockable connectors in the largest measurement range

– new test leads with lockable 6mm plugs

– new models with measuring currents up to 4kA and pulse energy of up to 8kJ

The DPG10 A-series has been discontinued.

New model DPG10-3000B/E

10/2016

We have extended our range of models to include higher currents. The DPG10-3000B/E delivers measuring current of up to 3000A and pulse energy up to 2500J. It is immediately available.

It is controlled via the same high performance software as the other models of the DPG series and was also kept extremely compact. The largest measurement range is equipped with special 6mm connectors; we also offer new, corresponding cables for them.

DPG10-3000B/E

Move to new premises

07/2016

At the end of July 2016, we moved to new premises, because the previous ones had become too small. Especially storage capacity had become inadequate for a while.

The move occurred within the same commercial complex, so that our address and all contact data have remained unchanged.

The new domicile was given a full makeover and was partitioned and equipped according to our requirements (such as ESD flooring and special illumination). The available floor space has almost doubled as a result. Since the entire complex has also been fully refurbished, we look forward to working in a very pleasant environment.
